Jasic TIG 300P DC TIG Welder
Availability:
In stock
SKU
ZXJT-300P
£1,656.48
£1,380.40
Availability
In Stock
Categories:
hidden
Free Delivery
For orders over £75
hidden
Interest Free Finance
Up to 10 months
hidden
Payment Secured
Safe shopping with us
Key Features
- 8MM maximum weld thickness
- Pulse DC TIG
- 5A - 300A output
- Industrial grade machine
- 400V input supply
- Weight - 19.4KG
- Weld all steels
- 5 year warranty
The Jasic TIG 300 DC Pulse inverter is equipped with industrial grade components and microprocessor control for high accuracy and performance. This technologically advanced inverter with a digital control panel allows for feature rich options and provides 8 channel automatic storage of the welding parameters.
Key Features
- TIG DC Pulse with digital control
- Program memory storage
- Microprocessor control of a wide range of functions
- HF and lift TIG
- Remote control interface
- VRD function
- Digital display
- Intelligent fan and cooler control
- Excellent welding characteristics
- Protection system to enhance equipment life
- Suitable for welding in an environment with increased risk of electric sjhock
- Water cooled option available
- Generator Friendly

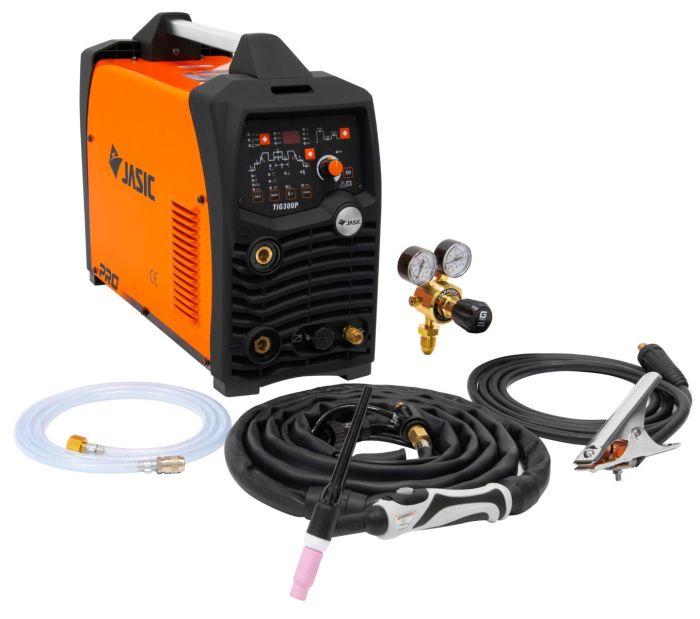

- Package includes - Inverter power source, TIG torch, adaptor and gas regulator, leads and earth clamp, 5 year warranty
Technical Data
- Input voltage - AC 400V
- Leff (A) - 9.9
- Input power (kVA) - 11
- Current range (A) - TIG 5 - 300, MMA 20 - 210
- Duty cycle @ 40C - TIG 300A @ 20%, MMA 210A @ 50%
- No-load voltage (V) - 60 (11.8V - VRD)
- Efficiency (%) - 85
- Protection/insulation class - IP23S/F
- Dimensions (LxWxH) - 566 X 224 X 405
- Weight - 19.4KG
Brand | Jasic |
---|---|
GYS Offer | No |
Is Laser Product | No |
Pulse / Non Pulse | Pulse |
Max Weldable Thickness | 3MM, 5MM, 8MM |
Input Voltage | 400V |
Warranty Period | 5 Year |
Welding Output | DC Only |
Foot Pedal Compatible? | Yes |
Weldable Materials | Copper, Inconel, Mild Steel, Stainless Steel, Titanium |
Short Description | Key Features
|
POA | No |
