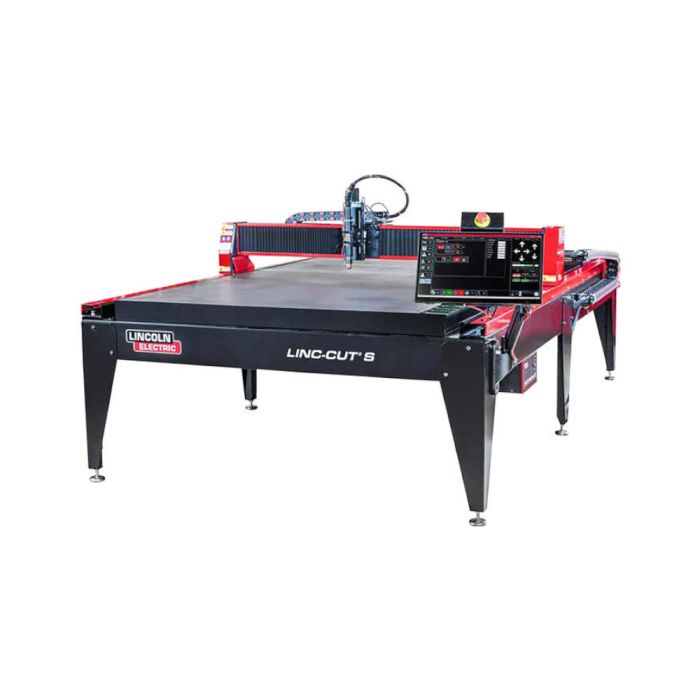

Lincoln Electric LINC-CUT S 1530W CNC Plasma Cutting Table - 3M x 1.5M

• Complete cutting system with high quality single-source components.
• 2 year warranty.
• Air plasma cutting.
• For mild steel and stainless steel.
• Compact machine optimizing the floor space.
• Fast installation with minimal learning curve for operators.
• Ready for operation within less than one hour after delivery and installation.
• The water table makes it possible to capture the dust released during cutting.
• The residual gases which escape remain below the exposure limit values in workshop conditions of sufficient dimensions with air renewal and an average effective cutting time of 2 hours.
• Load capacity adapted to sheet format 3M x 1.5M in thickness 25MM.
• Accumove controller with new interface VMD including standard forms, an automatic nesting, process management with an integrated database, and manual functions. Intuitive and easy to use.
• Linear guided plasma torch for cutting integrating positioning laser spot.
• Precision gear rack and pinion drive system.

Further Features

Maximum cut speed (Mild steel):

• 6MM: 5300MM/min
• 12MM: 2200MM/min
• 25MM: 800MM/min

Excellent cutting performance:

– Low cutting kerf angle, very smooth cut face.
– Cutting but also plasma marking.
– Quality management, in particular to improve the straightness of bolt holes.

 Easy to use:

– Only need compressed air.
– Large (20") and intuitive touch screen.

Low operating costs:

– XL life of consumables.
– Fast cutting speeds.
– Virtually dross-free cuts reduces need for finishing.

ACCUMOVE

ACCUMOVE motion control technology offering advanced machine control and combining all functions to simplify use. It provides increased processing power and synchronization of each component on the table. Height control, motors and computer aided manufacturing software, are all managed with a single operating system - keeping the entire communication loop under one display.

VMD (Visual Machine Designer)

VMD is the human-machine interface (HMI) of all ACCUMOVE® CNC controllers. ts user-friendly design and appealing layout is very easy to learn. A full set of new features has been installed directly in the controller to simplify the cutting process:

• Process management –all parameters are controlled from the interface depending on the simple choice of material and thickness simplifying the implementation of plasma cutting. Several functions increase cycle productivity and automatically compensate for consumable wear.
• Plate alignment – simplifies material loading, especially when dealing with thicker metal sheets. Regardless the orientation of the sheet, the ACCUMOVE controller adjusts the trajectory accordingly.
• Laser positioning mode – simplifies the use of the machine for aligning the sheets, defining the starting point or in test mode.
• 36 standard shapes – comes pre-loaded into the software, and includes a set of adjustable shapes from a basic rectangle to complex circular flanges.
• Automatic nesting module – load your dxf or dwg files, enter the quantity and the VMD software will generate your production schedule automatically.
