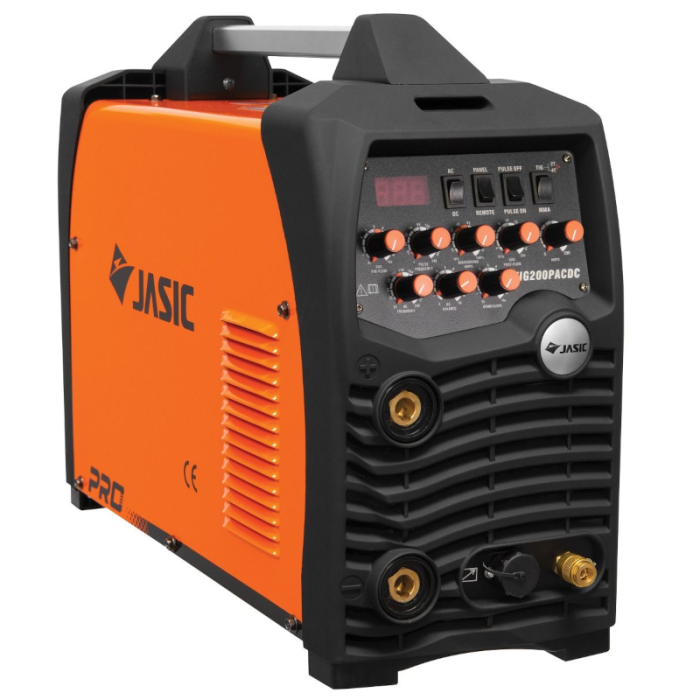

Jasic PRO 202P Analogue AC/DC TIG Welder

Availability: In stock
Only %1 left
SKU
JT-202A
As low as £1,190.70 £992.25
Availability
In Stock
dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Delivery & Return

Free Delivery

For orders over £75

Interest Free Finance

Up to 10 months

Payment Secured

Safe shopping with us

Key Features

  • 5MM maximum weld thickness
  • Analogue control
  • Pulse AC/DC TIG welder
  • 10A - 200A output
  • 240V input supply
  • Weight - 15KG
  • Weld all steels and aluminium
  • 5 year warranty

Key Features

  • Includes TIG Torch, Work Return Lead, Earth Clamp & Regulator
  • Advanced IGBT inverter technology
  • Inverting frequency of 33~43 kHz greatly reduces the size and weight of the welder
  • Great reduction in magnetic and resistance loss enhances the welding efficiency and energy saving effect
  • Working frequency is beyond the audio range, which almost eliminates noise pollution
  • Industry-leading control system
  • Advanced control technology meets the various welding applications and provides excellent welding performance
  • It can be used with a wide range of welding electrodes
  • Easy arc starting, less spatter, stable current and good weld bead shaping
  • Modern high tech design
  • Streamline design of front and rear panels
  • Front and rear panels made of high-intensity plastics suitable for working in severe conditions
  • Excellent insulating property
  • Water-resistant, antistatic and anticorrosion design

Technical Specifications

  • Input Voltage - 230V Single Phase
  • Input Supply - 17A
  • Amperage Range - TIG DC 10A - 200A /  TIG AC 20A - 200A | MMA DC 10A - 160A
  • Duty Cycle - TIG 200A @ 25%
  • No-Load Voltage - 65V
  • Protection/Insulation Class - IP21S/B
  • Dimensions - 566MM X 224MM X 405MM
  • Weight - 15KG
More Information
Brand Jasic
GYS Offer No
Is Laser Product No
Pulse / Non Pulse Pulse
Max Weldable Thickness 3MM, 5MM
Input Voltage 230V
Warranty Period 5 Year
Welding Output AC/DC

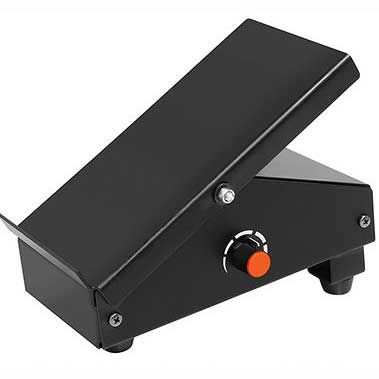

Foot Pedal Compatible? Yes
Weldable Materials Aluminium, Copper, Inconel, Mild Steel, Stainless Steel, Titanium
Short Description

Key Features

  • 5MM maximum weld thickness
  • Analogue control
  • Pulse AC/DC TIG welder
  • 10A - 200A output
  • 240V input supply
  • Weight - 15KG
  • Weld all steels and aluminium
  • 5 year warranty
POA No
Jasic PRO 202P Analogue AC/DC TIG Welder
