Starrett S3715 NG Horizontal Bandsaw Machine 400V

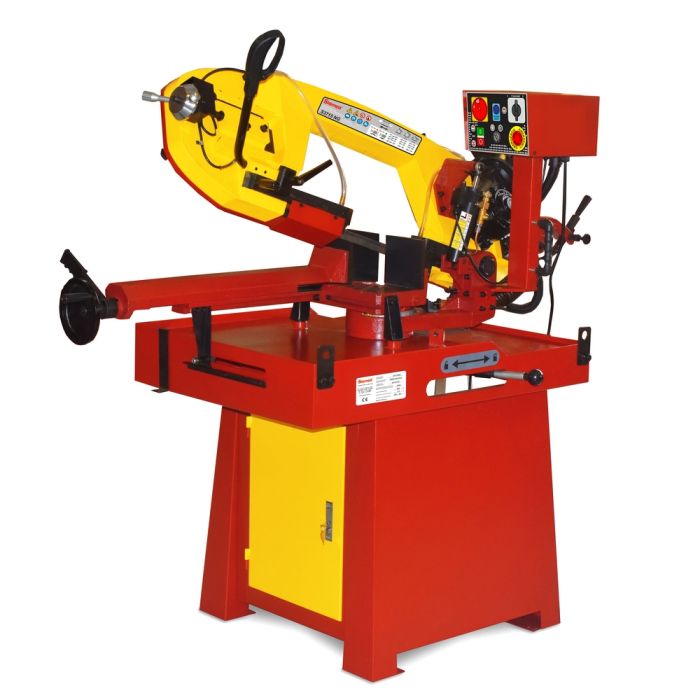

Starrett S3715NG Horizontal Bandsaw (400V)

The Starrett S3715NG Horizontal Bandsaw is engineered for businesses requiring precise mitre cutting of larger structural profiles and solid materials. With outstanding cutting and production capabilities, this machine is part of a next-generation series designed for durability, simplicity, and optimized performance, ensuring increased productivity and enhanced safety.

Key Features:

• Two cutting speeds, easily selectable via a toggle switch.
• Smooth bow descent prevents tooth breakage, extends blade life, and improves cut quality.
• CE Compliant for safety and reliability.

Cutting Capability:

• Bandsaw Blade: 27mm x 2680mm – ideal for cutting a wide range of materials.
• Cost-Effective Cutting: Reduced cost per cut due to efficient design.
• Gravitational & Manual Feeds: Versatile feed options for different cutting needs.
• Mitre Cutting Angles: Right up to +60º and left up to -45º for cutting frames at various angles.
• Electric Cooling System: Keeps the blade and material at optimal temperatures during operation.

Features & Benefits:

• Movable Guide with Bearings & Carbide Inserts: Ensures precise, perpendicular cuts.
• Blade Tensioning System with Limit Switch: Automatically stops the machine to prevent over-tensioning.
• Hydraulic Cylinder (Damper): Controls the smooth downward movement of the bow.
• Quick-Clamp Vice System: Enables fast and easy workpiece securing.
• Durable Fixed Guide: Equipped with hard-wearing metal bearings and inserts, plus a swarf brush to keep the cutting area clean.

Technical Specifications:

• Net Weight: 268 kg
• Motor Power: 1.1 kW / 1.5 hp
• Blade Dimensions: 2680mm x 27mm x 0.9mm
• Cutting Speed: 38 or 76 m/min

Cutting Capacity:

• Round (0º): 245 mm
• Round (45º): 190 mm
• Round (60º): 130 mm
• Round (-45º): 190 mm
• Square (0º): 245 x 245 mm
• Square (45º): 155 x 155 mm
• Square (60º): 125 x 125 mm
• Square (-45º): 155 x 155 mm
• Rectangle (0º): 320 x 195 mm
• Rectangle (45º): 180 x 140 mm
• Rectangle (60º): 130 x 125 mm
• Rectangle (-45º): 200 x 140 mm
