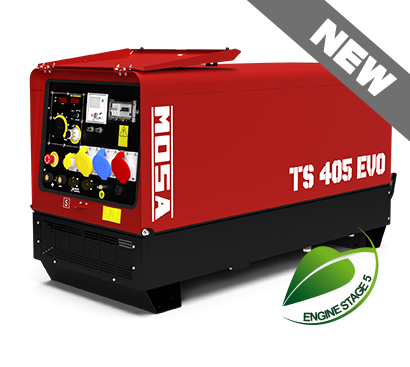

The MOSA TS 405 EVO is one of MOSA's new flagship diesel welder generators. It is a 400A welder generator with a stage V Kohler KDW1003 engine.
Key Features
- Current range of 20A - 400A
- OCV: 75V
- 14KVA 3 phase outlet
- 11.5 hours continuous run time
The MOSA TS 405 EVO is one of MOSA's new flagship diesel welder generators. It is a 400A welder generator with a stage V Kohler KDW1003 engine. With a wide range of auxillary power output sockets, including 400V, 230V & 110V, there isn't much in the way of power tools that cannot be powered by this generator. The generator produces an open circuit voltage of 75V, meaning that cellulosic rods such as AWS spec 6010 can be burned.
In terms of welding current to weight ratio there is not much on the market that competes with the TS 405 EVO. It's dry weight is a mere 455KG, with a 400A DC welding current output.
EVO CONTROL is the front panel that using an analog control allows to have features mandatory for users:
- Current control
- Arc-force control
- Half scale to increase the precision of the current control
Technical Specifications
- Current range: 20A - 400A
- Duty cycle: 60% at 300A
- OCV: 75V
- Auxillary power: 14KVA 400V / 8KVA 230V / 4KVA 110V
- Fuel tank capacity: 38L
- Running time (welding at 100%): 11.5 hours
- Sound level (acoustic power): 96DBA
- Weight - 455KG dry
- Dimensions: 1433MM x 710MM x 945MM
Brand | MOSA |
---|---|
Lead Time | 2-4 Working Days |
Warranty Period | 1 Year |
Engine Type | Diesel |
Generator Type | Welder Generator |
Auxiliary Output | 1 KVA, 2 KVA, 3 KVA, 4 KVA, 5 KVA, 6 KVA, 7 KVA, 8 KVA, 9 KVA, 10 KVA, 11 KVA, 12 KVA, 13 KVA, 14 KVA |
Power Outlet(s) | 110V 32A, 230V 32A, 400V 32A |
Short Description | The MOSA TS 405 EVO is one of MOSA's new flagship diesel welder generators. It is a 400A welder generator with a stage V Kohler KDW1003 engine. Key Features
|
