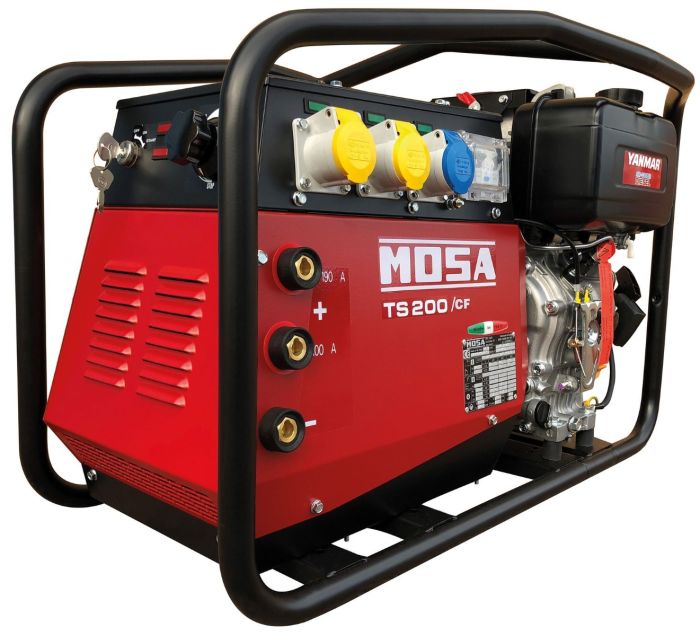

The MOSA TS200 DES/CF is a rugged, built-to-last diesel engine powered welder generator that is capable of outputting 190 amps of DC welding power. In addition to its welding current output it can also provide the user with both 110V and 230V auxillary power, from it's 2 x 110V 16A sockets + it's 1 x 230V 16A socket.
Key Features
- Duty cycle: 60% at 160A
- Capable of running CEL electrodes such as 6010
- 4KVA auxillary power
- Electric start
The MOSA TS200 DES/CF is a rugged, built-to-last diesel engine powered welder generator that is capable of outputting 190 amps of DC welding power. With 190A of welding current at the users disposal a 4MM diameter welding electrode can easily be utilsed. In addition to its welding current output it can also provide the user with both 110V and 230V auxillary power, from it's 2 x 110V 16A sockets + it's 1 x 230V 16A socket.
It is equipped with a reliable Yanmar L100N diesel engine with electric start and an asynchronous alternator. A noteable feature of this machine is that it does not have a plethora of electronics that could potentially go wrong, the welding current is adjusted simply by changing the RPM of the engine. Also, the machines open circuit voltage of 98V means it is capable of running cellulosic type electrodes such as 6010, therefore making it a great option for pipe welders.
Technical Specifications
- Current range: 20A - 190A
- Duty cycle: 60% at 160A
- Open circuit voltage: 98V
- Auxillary power: 230V 4KVA + 110V 4KVA (2 x 110V 16a socket + 1 x 230V 16a socket)
- Starter type: electric
- Engine: Diesel Yanmar 100LN
- Fuel tank capacity: 5.5L
- Fuel consumption rate (welding at 60%): 1L per hour
- Dry weight: 150KG
- Dimensions: 900MM x 550MM x 620MM
- Insulation class: IP23
- Sound level (Acoustic power): 99DBA
| Brand | MOSA |
|---|---|
| Lead Time | 2-4 Working Days |
| Warranty Period | 1 Year |
| Engine Type | Diesel |
| Generator Type | Generator |
| Auxiliary Output | 1 KVA, 2 KVA, 3 KVA, 4 KVA, 5 KVA |
| Power Outlet(s) | 110V 16A, 230V 16A |
| Short Description | The MOSA TS200 DES/CF is a rugged, built-to-last diesel engine powered welder generator that is capable of outputting 190 amps of DC welding power. In addition to its welding current output it can also provide the user with both 110V and 230V auxillary power, from it's 2 x 110V 16A sockets + it's 1 x 230V 16A socket. Key Features
|
