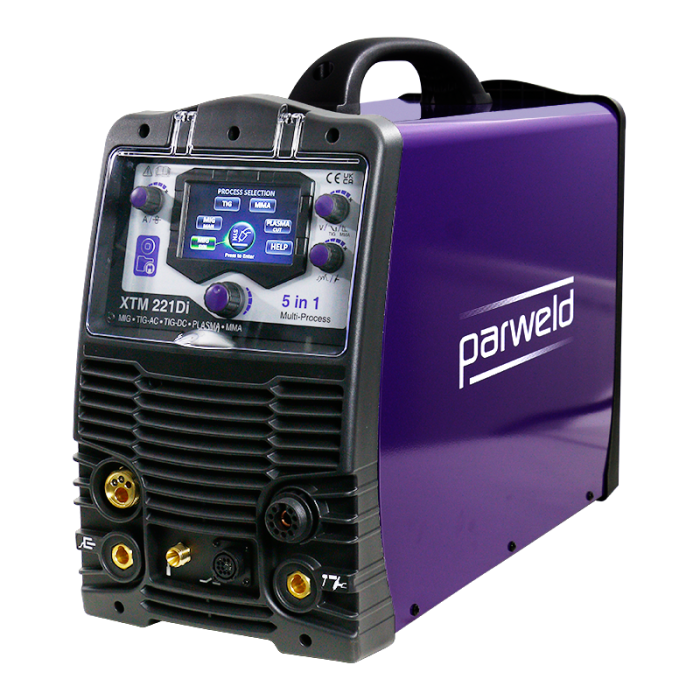

Parweld XTM 221DI 5 in 1 Multi Process Synergic MIG, AC/DC TIG Welder & Plasma Cutter - 110V/230V

Technical Specifications:

• Input voltage: 110V/230V
• Input current: 32A (110V) / 16A (230V)
• Output current MIG & TIG:  200 amps on 230V input voltage & 140 amps on 110V input voltage
• Output current MMA: 200 amps on 230V input voltage & 110 amps on 110V input voltage
• Output current Plasma: 40 amps on 230V input voltage & 25 amps on 110V input voltage
• Wire reel capacity: 15KG (300MM)
• Wire feed rollers: 4 roll
• Generator requirement: 7KVA
• Weight: 30KG
• Dimensions: 650MM x 275MM x 495MM

The Parweld XTM 221DI is capable of welding:

MIG Welding

• Up to 10MM thick mild / carbon steel
• Up to 10MM thick stainless steel
• Up to 6MM thick aluminium

TIG Welding

• Up to 6MM thick mild / carbon steel
• Up to 6MM thick stainless steel
• Up to 5MM thick aluminium

All of the above quoted thickness' are based on single pass welding. Thicker materials can be welded with the use of multiple weld passes & suitable material preparation.

The Parweld XTM 221DI is capable of clean cutting up to 15MM thick material. The severance cut capacity of this machine is 20MM.

The P3 XTM 221DI package includes:

• 4 MTR Parweld Pro Grip MAX WP26 TIG torch with on-torch parameter control
• 3 MTR Parweld Pro Grip MB25 MIG torch with on-torch parameter
• 6 MTR Parweld XT4000 Plasma cutting torch
• 3 MTR earth lead with clamps
• 2 x Gas hose for TIG & MIG welding gases
• 1 x Air hose for plasma cutting
