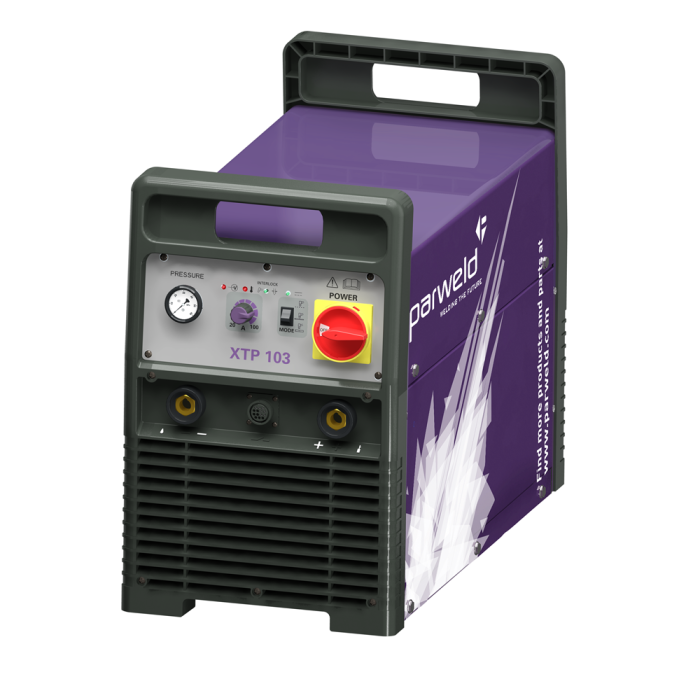

Parweld XTP 103 Plasma Cutter - 3 Phase
Availability:
In stock
SKU
XTP103
£3,016.06
£2,513.38
Availability
In Stock
Check your eligibility
Fast check - won't affect your credit rating.
Categories:
hidden
Free Delivery
For orders over £75
hidden
Interest Free Finance
Up to 10 months
hidden
Payment Secured
Safe shopping with us
Key Features
- 30MM clean cut
- 400V input supply
- CNC table compatible - Yes
- Cuts all metals
- Trafimet style XTA141 plasma torch
- Perfect for industrial use
- Duty cycle - 100A @ 100%
- Weight - 40.6KG
- 3 year warranty
Features
- Clean Cut - The XTP 103 offers a 30MM clean cut of steel & a 50MM severance cut.
- Variable Output - The XTP 103 boasts the ability to fine tune amperage to minimise dross on cut edges.
- Generator Friendly - The XTP 103 is able to cope with inputs which fluctuate by +/- 10% & can be used with the majority of generators.
- 3 Year Return To Base Warranty - "No Quibbles" warranty policy. Should something go wrong, Parweld will collect the machine, repair it & return it free of charge.
- Pilot Arc - Pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non high frequency ignition minimizes the risk of interference with electronic systems.
- CNC Interface - CNC interface allows for connecting to your plasma table of choice.
- Auto over voltage & over current protection.
- Built in air pressure regulator.
Technical Specifications
- Input Supply - 400V 3 Phase
- Amperage Range - 20A - 100A
- Duty Cycle - 100% @ 100A
- Cut Capacity - 30MM Clean / 50MM Severance
- Generator KVA Input - 8KVA
- Weight - 40.6KG
- Dimensions - 580MM X 310MM X 600MM
- Enclosure Protection - IP23S
| Brand | Parweld |
|---|---|
| GYS Offer | No |
| Is Laser Product | No |
| Input Voltage | 400V |
| Warranty Period | 3 Year + 3 Year |
| Max Cutting Thickness | 5MM, 8MM, 10MM, 12MM, 15MM, 20MM, 25MM, 30MM, 30MM + |
| Short Description | Key Features
|
| POA | No |
