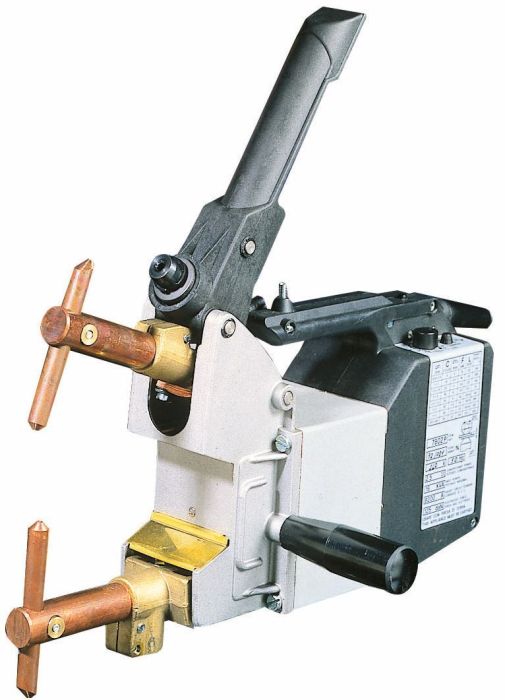

Tecna 2.5kVA Hand Spot Welder 230V

Availability: In stock
SKU
7902/P
£1,654.80 £1,379.00
Availability
In Stock
dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Delivery & Return

Free Delivery

For orders over £75

Interest Free Finance

Up to 10 months

Payment Secured

Safe shopping with us

Key features

  • Input Voltage - 230V
  • Suitable for auto body repair shops and maintenance shops
  • Maximum welding power - 16kVA
  • Supplied complete with 125mm arms
  • Weight - 116KG
  • Warranty - 12 months

Tecna 2.5kVA Hand Spot Welder 230V

This product is a spot welder by Tecna. This auto body spot welder has a rating of 2.5kVA.  Tecna portable spot welder(s) are lightweight professional. Tecna's automotive spot welder is available in 230V. There is a large choice of Tecna spot welder arms and electrodes to choose from.

Key Features

  • Versatile portable spot welder for auto body repair shops and maintenance shops
  • Synchronous built-in electronic timer with SCR from 2-65 cycles
  • Compensation circuit starts the timer only when there is a proper passage of current which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets
  • Current control with phase shift adjustment to carry out difficult welds, on very thin thickness on rods with reduced diameter, on stainless steel sheet and similar
  • All transformers are coated with F class insulation metal
  • Tests are made using 4000V
  • Force adjustment with scale daN
  • Additional arm couplings to provide larger opening between arms
  • Supplied complete with 125MM arms
  • Large choice of arms and electrodes
  • Pulsation weld time control
  • Cos fi control

Technical Data

  • Input Voltage - 230V
  • Delayed Fuses - 16A
  • Secondary No Load Voltage - 2.5V
  • Maximum Welding Power - 16kVA
  • Warranty - 12 Months
  • Standard Arms Throat Depth - 125MM
  • Noise production - <70 dBA
  • Net Weight with Arms - 11KG
More Information
GYS Offer No
Is Laser Product No
Short Description

Key features

  • Input Voltage - 230V
  • Suitable for auto body repair shops and maintenance shops
  • Maximum welding power - 16kVA
  • Supplied complete with 125mm arms
  • Weight - 116KG
  • Warranty - 12 months
POA No
Tecna 2.5kVA Hand Spot Welder 230V
