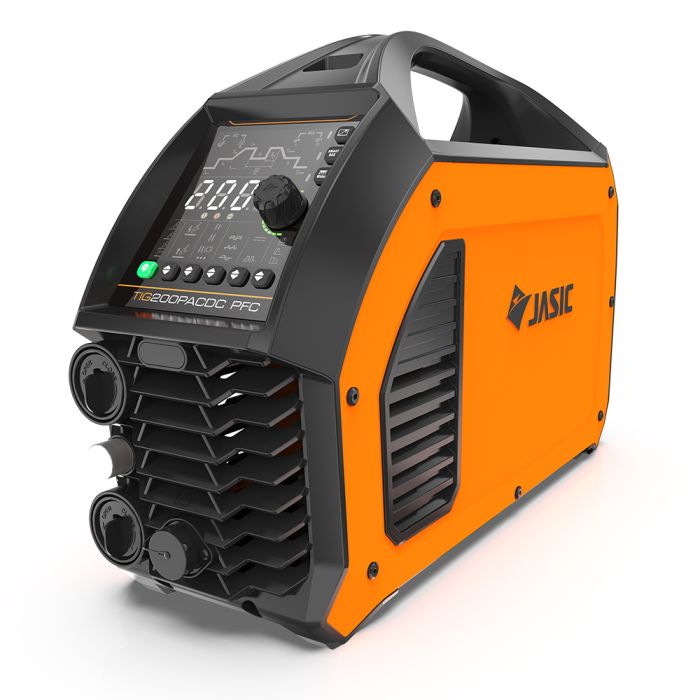

Jasic EVO 2.0 TIG 200P PFC Dual Voltage AC/DC Pulse TIG Welder (Water Cooled)

Welding Supplies Direct are proud to showcase the new EVO 2.0 range from Jasic, released May 2023. The new range inculcates rugged, ergonomic design, adaptable wide input voltage ranges, synergic parameter control & ClearVision technology to offer one of the most advanced yet affordable welding machine ranges available on the market.

Key features include:

• ClearVision technology: a beatiful, vivid colour digital display panel which makes setting parameters, even in the darkest areas, a breeze.
• Intelligent synergic control: Take the "messing" out of your parameter setting; with fully synergic control you can eliminate guess work and have accurate weld settings from the get go.
• Adaptable wide input voltage range: Allows the machine to run on any input voltage between 95V & 265V, meaning this machine can be used in the workshop or on-site.
• Welding engineer mode: Allows access to sub menu elements to check or change parameters.Smart DC lift TIG: Weld carbon and stainless steel with the built-in DC lift TIG capability (optional accessory TIG torch required).
• Dash-Arc: Combines a HF boosting circuit and programming logic to achieve high ignition performance; 99% arc striking success rate.
• Mutli AC waveforms
• Mixed waveform, mixed waveform frequency & mixed waveform duty cycle.
• Smart gas for optimised shielding gas consumption.
• Flexible remote control solutions.
• Generator friendly.
• Auto sleep mode for improved energy efficiency.
• Fan on demand.
• Voltage reduction device for improved safety.
• Ovecurrent and overheat protection.

The new EVO 2.0 from Jasic is subject to a testing procedure like no other, having to pass 42 individual tests prior to be being boxed up and shipped out to customers, thus ensuring compliance with the most stringent quality and safety standards. In addition to this, they have been designed from the ground up be more "user-centric" in their usability, whilst remaining rugged, robust and ergonomic.

Technical specifications:

• Input voltage: 95V - 265V
• No load voltage: 65V
• Input current: 240V 10.6A / 110V 16.1A (varies somewhat, dependent on process)
• Rated input power: 240V 4.7kVA / 110V 3.5kVA (varies somewhat, dependent on process)
• Current range DC TIG: 110V 5A - 160A / 240V 5A - 200A
• Current range AC TIG: 110V 20A - 169A / 20A - 200A
• Current range MMA: 110V 10A - 120A / 240V 10A - 160A
• Duty cycle (40C ambient temperature): 30% at 200A
• Efficiency: 80%
• Power factor: 0.95
• Idle state power: <50W
• Protection class: IP23S
• Insulation class: H
• Dimensions: 527MM x 182MM x 565MM
• Weight: 20.3KG

Standard package includes machine,  water cooler, TIG torch, earth clamp, argon regulator & gas hose.
